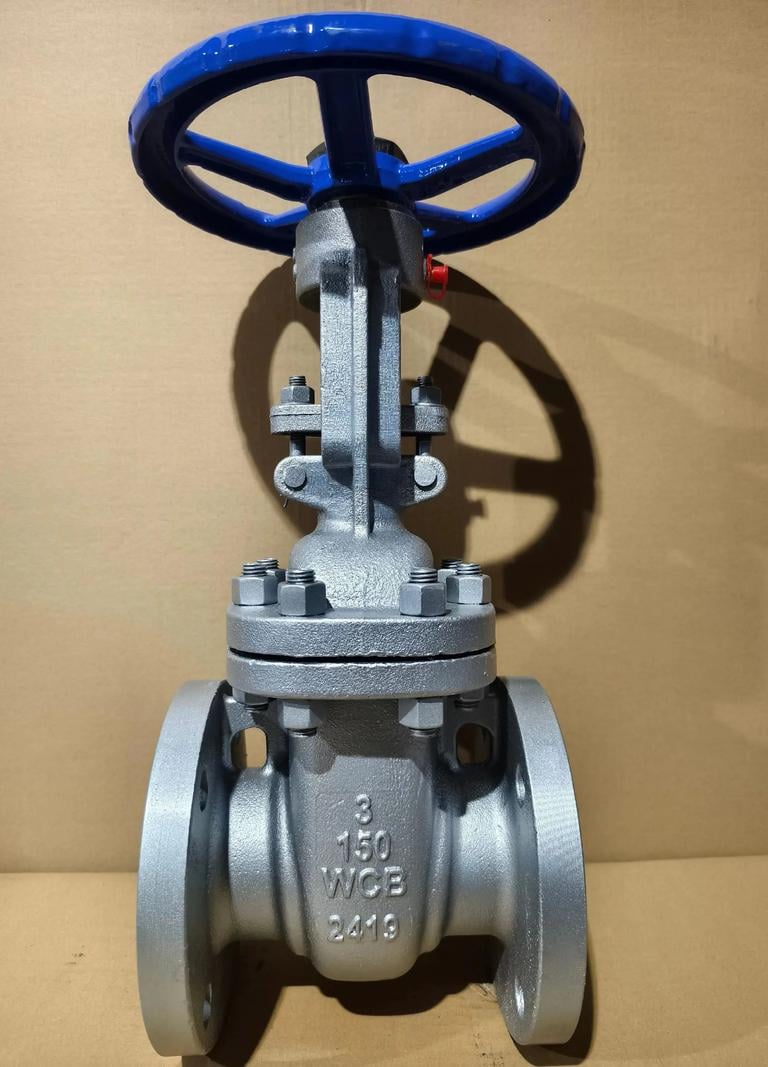

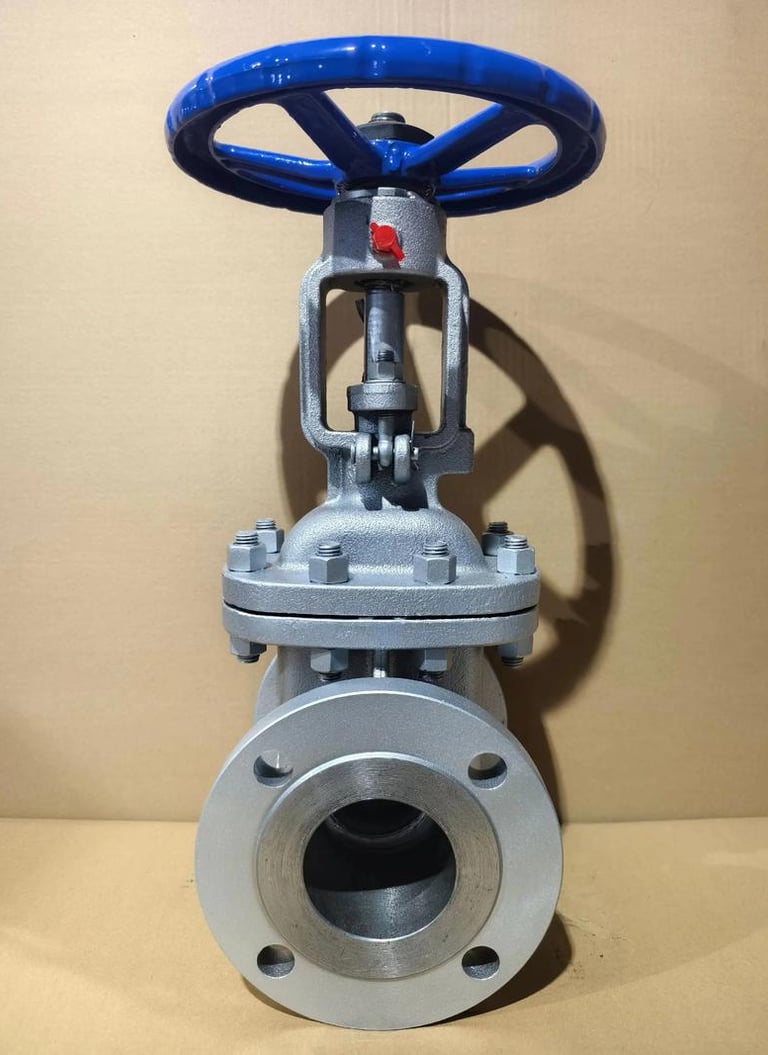

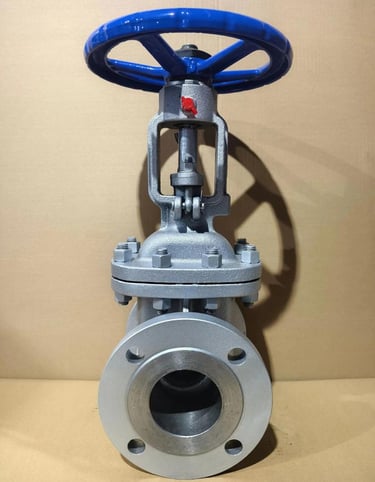

Gate valve

Write your txt here...

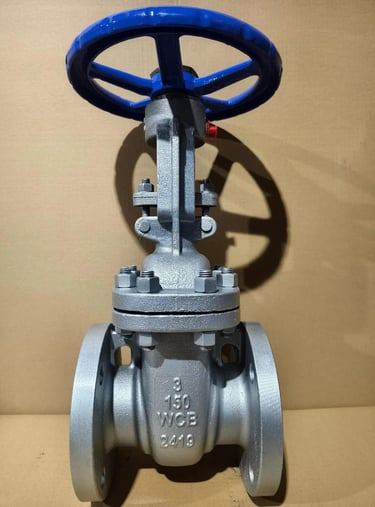

1. 🌐 Product Overview – Gate Valv Gate valves are commonly used shut-off valves, widely applied in systems requiring bi-directional flow. They are typically used in a fully open or fully closed position and are not suitable for partial opening or throttling applications.

2. Neway wedge gate valves comply with API 600 and ASME B16.34 standards, offering a wide range of product options to meet diverse application requirements.

3. 🔩 Specifications

   1. Size Range: 2" ~ 88" (DN50 ~ DN2200)

   2. Pressure Class: ASME CLASS 150 ~ 4500 (PN16 ~ PN760)

   3. Body Materials:

      • Carbon Steel

      • Stainless Steel

      • Alloy Steel

      • Duplex Stainless Steel

      • Low Temperature Steel

      • Nickel-based Alloys

      • Titanium Alloy

   4. End Connections:

      • RF (Raised Face)

      • BW (Butt Weld)

      • RTJ (Ring Type Joint)

   5. Operation Methods:

      1. Manual

      2. Gear Operated

      3. Pneumatic

      4. Electric

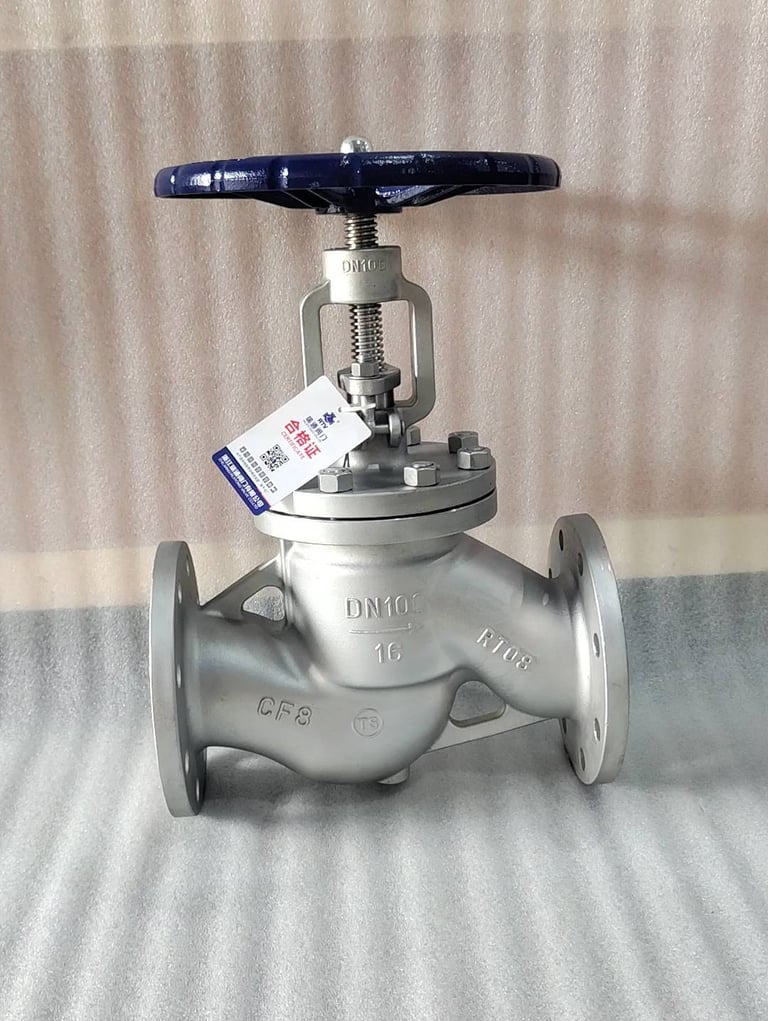

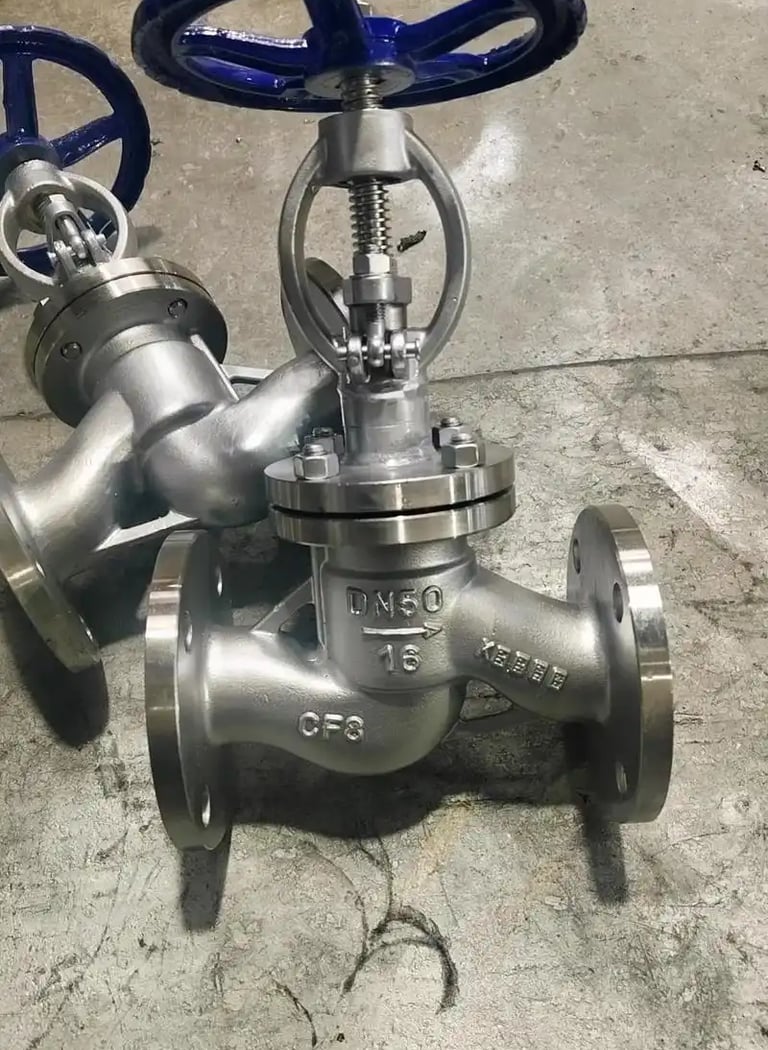

Globe Valve

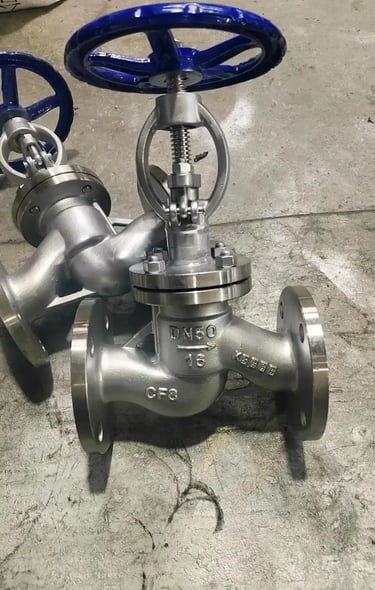

🌐 Product Overview – Globe Valve

Globe valves are forced-sealing valves, typically used as isolation valves to separate media in pipeline systems. They feature a low valve opening height, short stroke, and quick open/close time, making them ideal for applications requiring frequent operation.

• Neway offers two structural options:

• Rising Stem

• Rotating Rising Stem

We provide a full range of valve configurations, including:

• T-type

• Y-type

• Angle Type valves.

🔩 Specifications

• Size Range: 2" ~ 24" (DN50 ~ DN600)

• Pressure Class: ASME CLASS 150 ~ 4500 (PN16 ~ PN760)

• Body Materials:

  • Carbon Steel

  • Stainless Steel

  • Alloy Steel

  • Duplex Stainless Steel

  • Low Temperature Steel

  • Nickel-based Alloys

  • Titanium Alloy

• End Connections:

  • RF (Raised Face)

  • BW (Butt Weld)

  • RTJ (Ring Type Joint)

• Operation Methods:

  • Manual

  • Gear Operated

  • Pneumatic

  • Electric

  • Hydraulic

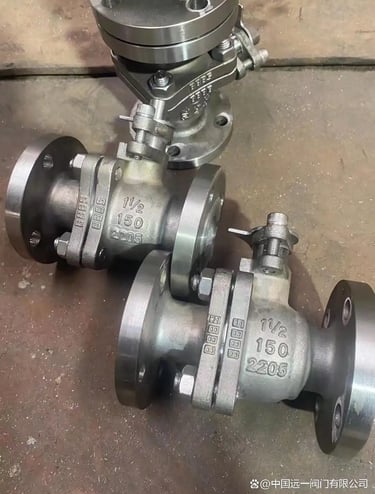

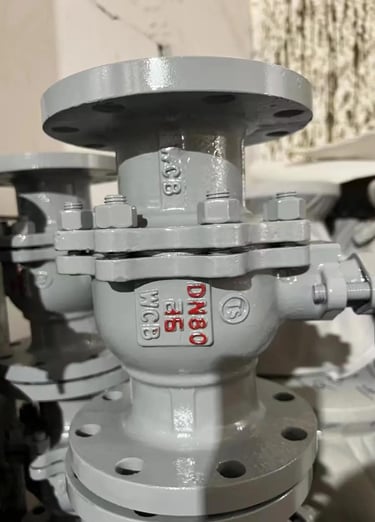

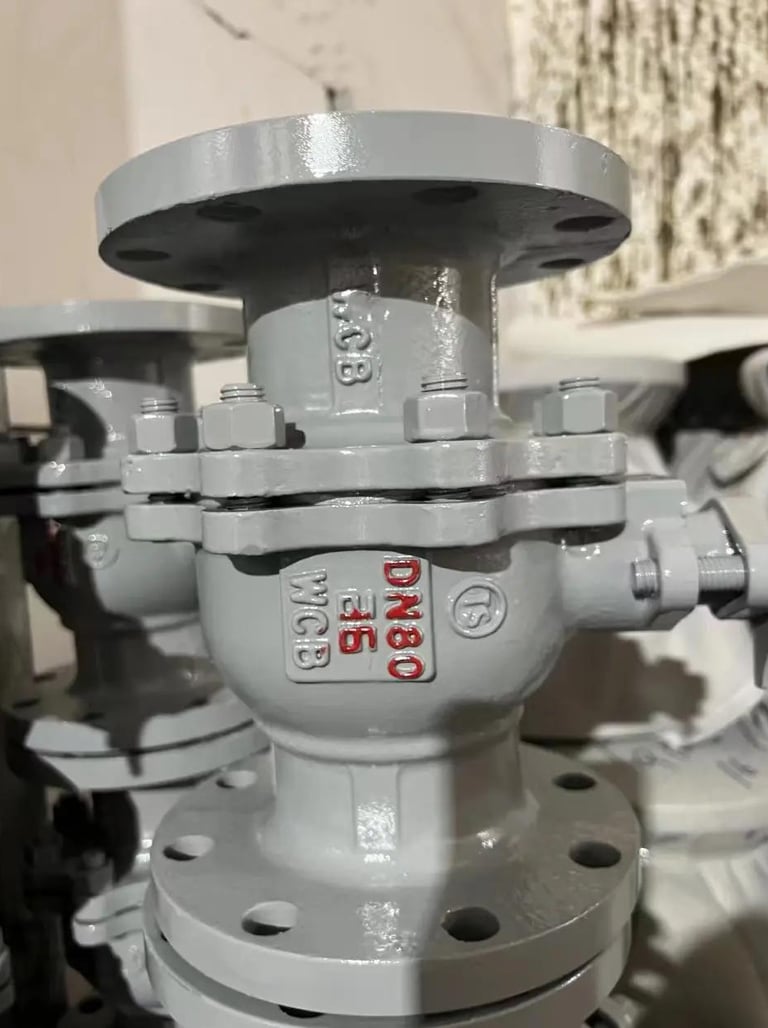

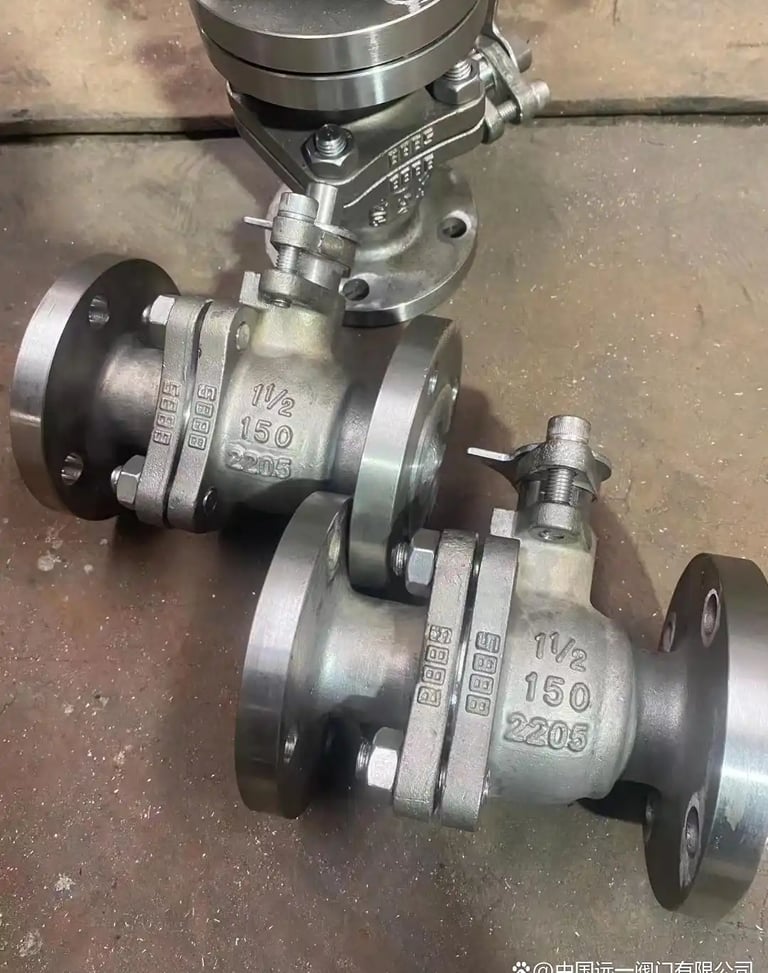

Ball valve

🌐 Product Overview – Ball Valve

Ball valves are designed with either a one-piece body design or a two-piece split-body design, in compliance with ISO17292 standards. This series of ball valves is typically suited for low-pressure conditions (150~300LB), with a temperature range from -46°C to 200°C. All valves in this series feature a fire-safe design and have passed fire testing according to API607 and API6FA, with Lloyd's certification.

🔩 Specifications

• Size Range: 1/2" ~ 10" (DN15 ~ DN250)

• Pressure Class: ASME CLASS 150 ~ 300 (PN16 ~ PN40)

• Body Materials:

  • Carbon Steel

  • Stainless Steel

  • Alloy Steel

  • Duplex Stainless Steel

  • Nickel-based Alloys

• End Connections:

  • Flanged End

  • Butt Weld End

• Operation Methods:

  • Manual

  • Pneumatic

  • Electric

  • Hydraulic

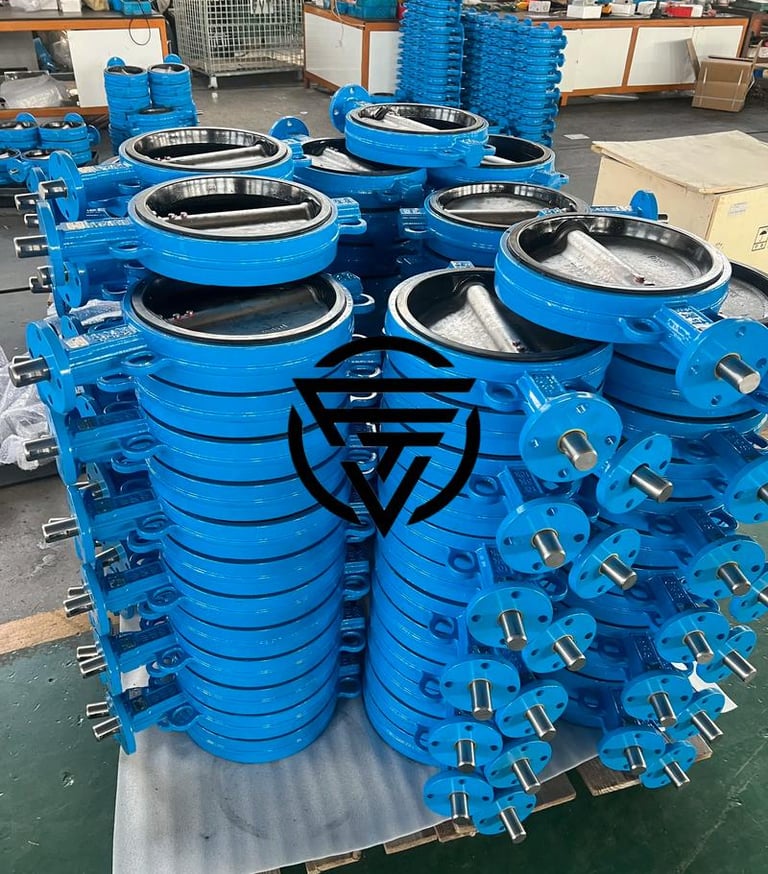

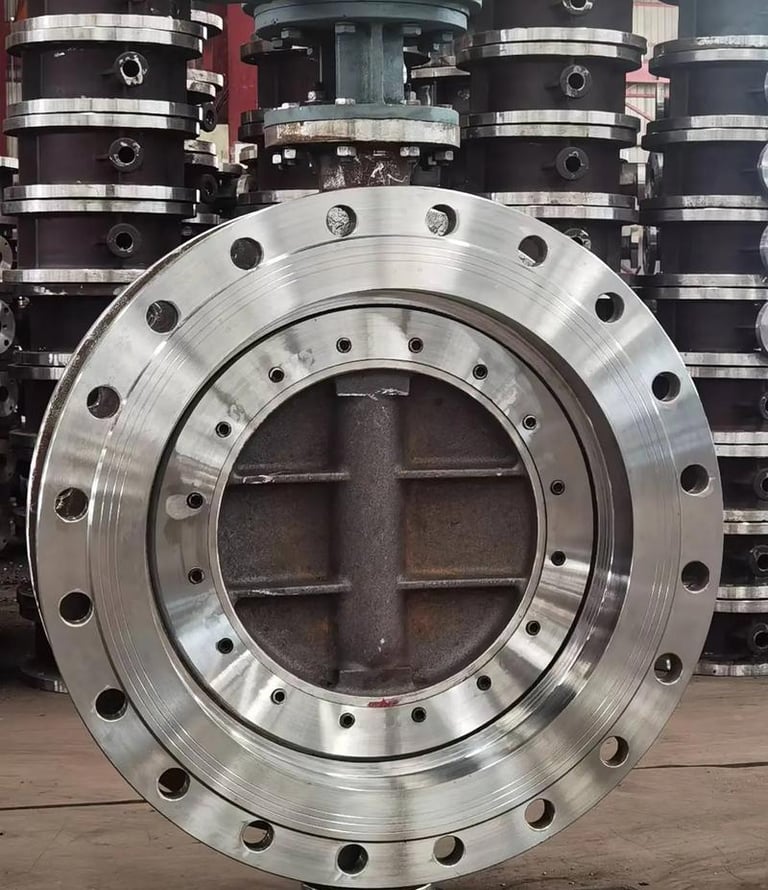

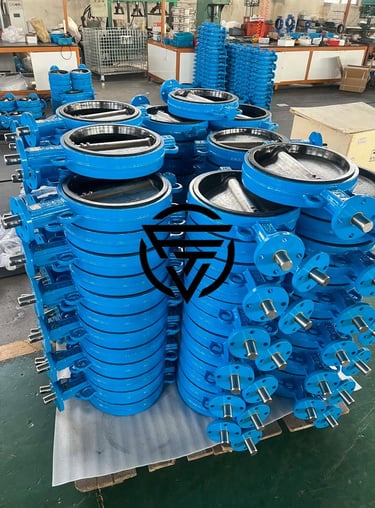

🌐 Product Overview – Soft-Seal Elastic Seat Centerline Butterfly Valve

The soft-seal elastic seat centerline butterfly valve combines the functions of both on/off and flow regulation, widely used in various industrial fluid control systems. The fully rubber-coated valve body ensures complete isolation from the medium, making it suitable for corrosive environments. Compared to traditional gate valves, globe valves, and ball valves, it is lightweight and cost-effective.

With the rapid development of various synthetic rubber industries, the soft-seal elastic seat valve is not only applicable to traditional water treatment industries, but also to a variety of modern chemical industries. The Neway centerline butterfly valve features a concentric design and complies with the API609 standard.

🔩 Specifications

• Size Range: 2" ~ 72" (DN50 ~ DN1800)

• Pressure Class: 85 ~ 232 Psi (PN6 ~ PN16)

• Body Materials:

  • Ductile Iron

  • Cast Steel

  • Stainless Steel

  • Copper

• End Connections:

  • Wafer

  • Lug

  • RF (Raised Face)

• Operation Methods:

  • Manual

  • Gearbox

  • Electric

  • Pneumatic

  • Hydraulic.

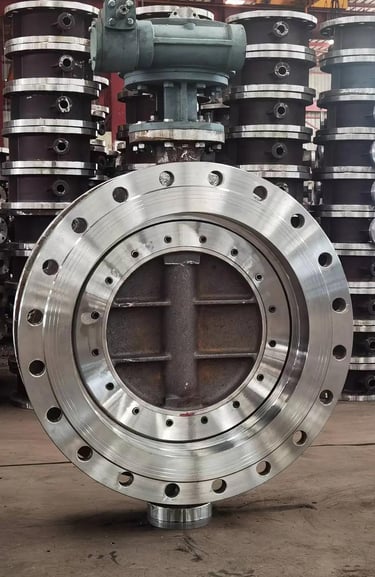

Butterfly valve

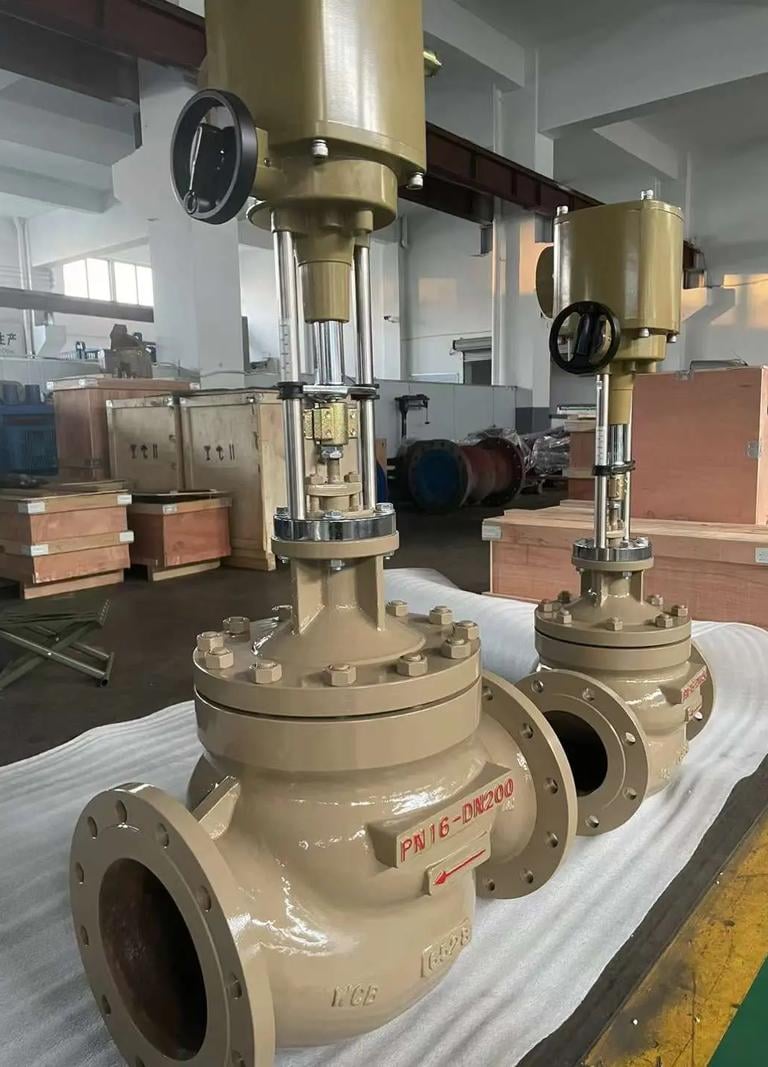

Pressure reducing control valve

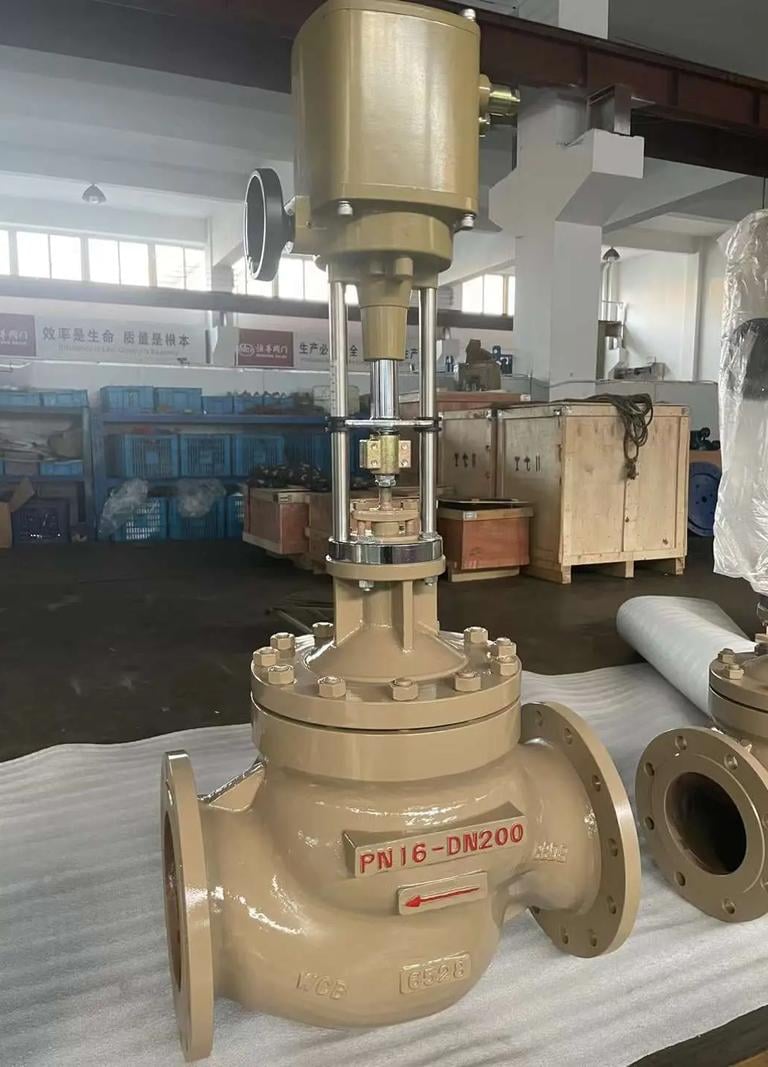

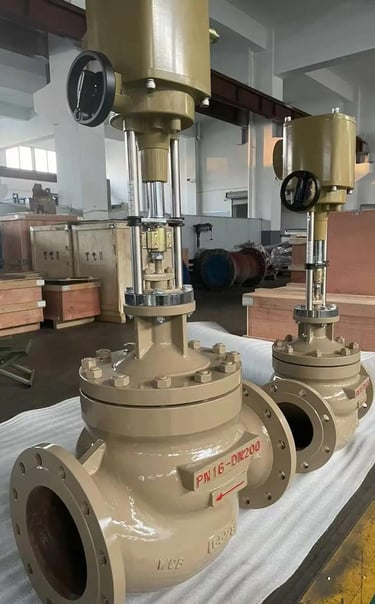

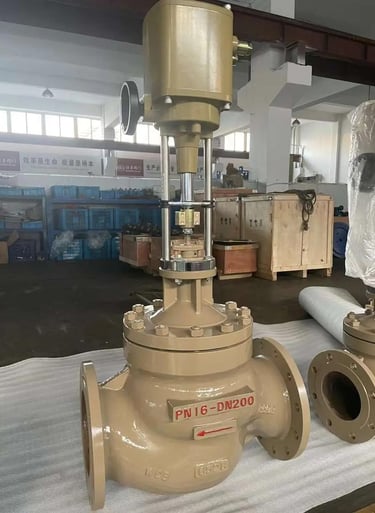

🌐 Product Overview – Multi-Stage Pressure Reducing Control Valve

pressure reducing control valve utilizes a multi-stage sleeve design for pressure reduction. The valve body features an S-shaped flow path design, which minimizes fluid resistance and enhances flow capacity. The valve plug adopts a balanced structure, ensuring smooth regulation and strong resistance to pressure differential.

Depending on the pressure differential across the valve, the valve employs 1 to 3 stages of sleeve pressure reduction, effectively preventing flashing and cavitation.

🔩 Specifications

• Size Range: 1-1/2" ~ 12" (DN40 ~ DN300)

• Pressure Class: ASME CLASS 600 ~ 2500 (PN63 ~ PN420)

• Body Materials:

  • Carbon Steel

  • Stainless Steel

  • Alloy Steel

  • Duplex Stainless Steel

• Operation Methods:

  • PDL Pneumatic Diaphragm Actuator

  • PCL Pneumatic Piston Actuator

  • Electric Actuator

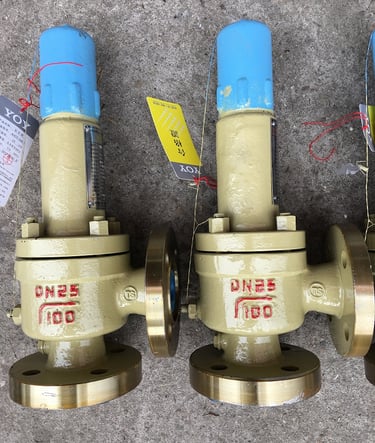

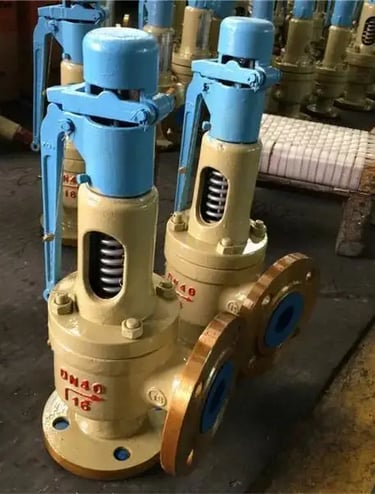

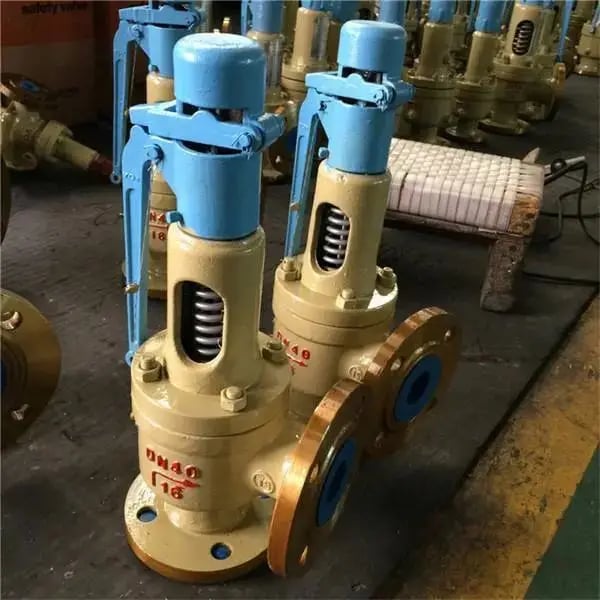

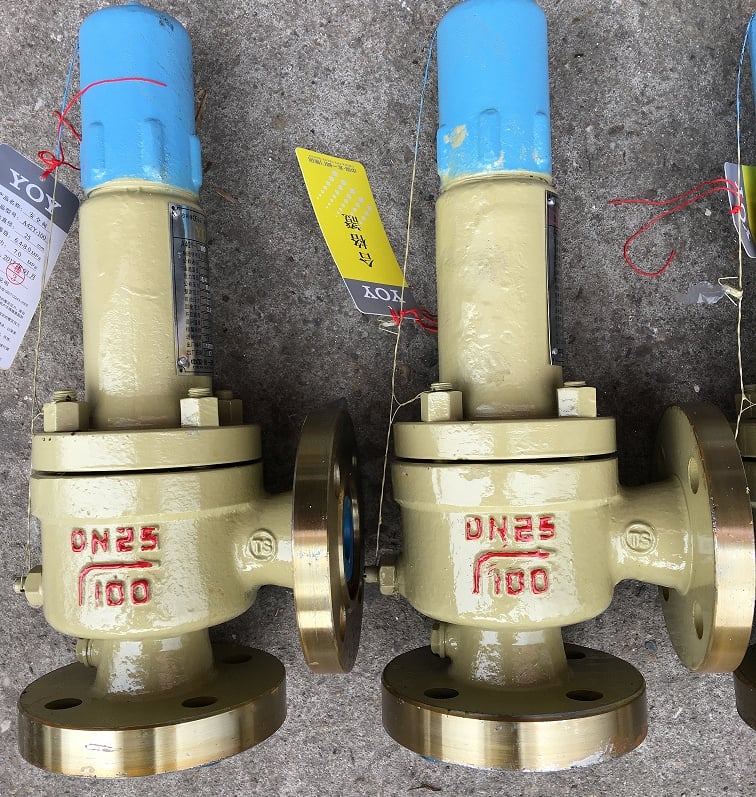

Spring-loaded safety valve

🌐 Product Overview – Spring-Loaded Full Open and Closed Safety Valve

Overview:
The A42Y-C type safety valve is designed for equipment and pipelines with working temperatures of ≤300°C, suitable for air, petroleum gas, liquids, and other media. It serves as a reliable overpressure protection device.

The A42Y-P and A42Y-R types are suitable for equipment and pipelines handling corrosive media with working temperatures of ≤200°C, providing effective overpressure protection in corrosive environments.

Flanged Connection Standards:

• JB/T …-94 Series 1: for pressure ratings ≥6.4 MPa

• JB/T …-94 Series 2: for other applicable pressure ratings

Key Features:

• Spring-loaded design ensures rapid response to overpressure.

• Full open and full closed functionality provides reliable system protection.

• Durable materials suitable for general and corrosive media.

• Flexible installation: can be installed horizontally or vertically.

Applications:

• Industrial pipelines and equipment

• High-rise residential water and heating systems

• Boilers, heat exchangers, and circulation systems

• Fire protection systems

Summary:
These spring-loaded safety valves provide reliable, fast-acting overpressure protection for a wide range of media and working conditions, with options for corrosive and non-corrosive environments.
